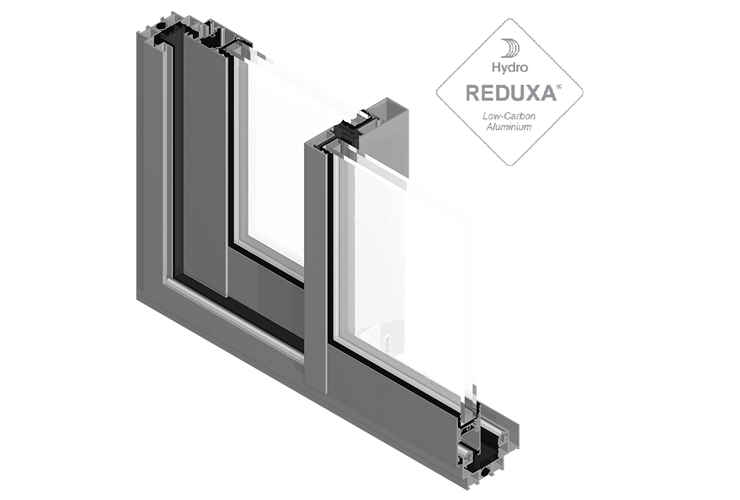

SOLEAL 55 - Universal Sliding System

55 mm module (on basic fixed frame) and thermal break of 20 mm
Various applications suitable for both collective or indivudual residential projects
The installation and cladding environments are the same as for SOLEAL casements and doors
All applications are available with concealed drainage
Disabled access threshold solution available on all applications

Large Sizes

• Max dimensions up to W 4.30 m x H 2.60 m (patio door 2-leaf 2 tracks)
• Max weight per leaf 200 kg
• Glass infill from 24 mm to 32 mm

Diversity of Applications

• Sliding patio door 2 and 4-leaf on 2 tracks
• Sliding patio door 3 dependent and independent leaf on 2 tracks
• Sliding patio door 3 and 6-leaf on 3 tracks
• Sliding patio door 4 and 8-leaf on 4 tracks

Diversity of Forms

• Tubular reinforcement
• Minimalist-style strip reinforcer which may be enhanced with decorative profiles (Technal patent)

High Performance

• Uw up to 1.4 W/m².K, TLw = 0.59 et Sw = 0.45 double glazing with Ug = 1.0 W/m².K + insulating reinforcement (W 4.30 m x 2.60 m)
• 34 dB (Ra, Tr) patio door 2 tracks - 2-leaf (W 2.35 m x H 2.18 m)
• Air permeability: Class 4
• Water tightness: Class 6A
• Wind pressure resistance: Class B2
• Sliding patio door 2 tracks - 2-leaf (W 3 m x H 2.50 m)
